DDS-120 PC-based Virtual Oscilloscope, Silver [US ONLY]

0 reviews Write a review

Qty

Site engineer travel to debug
AE engineers diagnose equipment and solve the problem for customer on-site Electronics Engineer develop tools, save money and desktop space
The ideal partner of electronic enthusiasts for their amateur making
Fault diagnosis equipment for repair personnel Demonstration Teaching Laboratory aids of colleges and Universities
Automatic test equipment for production

Support XP~Win10 series of operating system
Software interface could be combined with the third party software
Waveform recording and continuous playback as well as specified frame playback functions by frame-by-frame
Input channel arithmetic and FFT analysis
Anti-aliasing features of waveform drawing to reduce rendering errors further
Memory function of user personalization settings
The rapid completion of the mouse to control the trigger function settings

Category	Index
Interface	USB 2.0
Number of Channels	2
Export	1K Hz, 3.25V level standard reference square wave output
Bandwidth	20MHZ
Maximum sampling rate	25M sps (single), 50M sps (dual channel)
Vertical resolution	8 bit
Voltage range	±5v,can be extended to ± 50v through X10 table pen, extended to ± 500v through X100 table pen(Optional Probe)
Noise size	±25mv500mv/div Stalls ±10mv200mv/div Stalls ±8mv100mv/div Stalls ±4mv50mv/div Stalls
Trigger coupling	AC AC-coupled, DC DC-coupled
Triggering conditions	Trigger level + rising / falling-edge trigger
Trigger	Auto, Normal and Single Trigger
Input impedance	1M / 25pf
Memory Depth	1K-2M
Power	< 2 W
Weight	<400g
Automatic measurement	Maximum, minimum, peak to peak, frequency, average, RMS, rise time, Positive Width, Negative Width, Duty Cycle

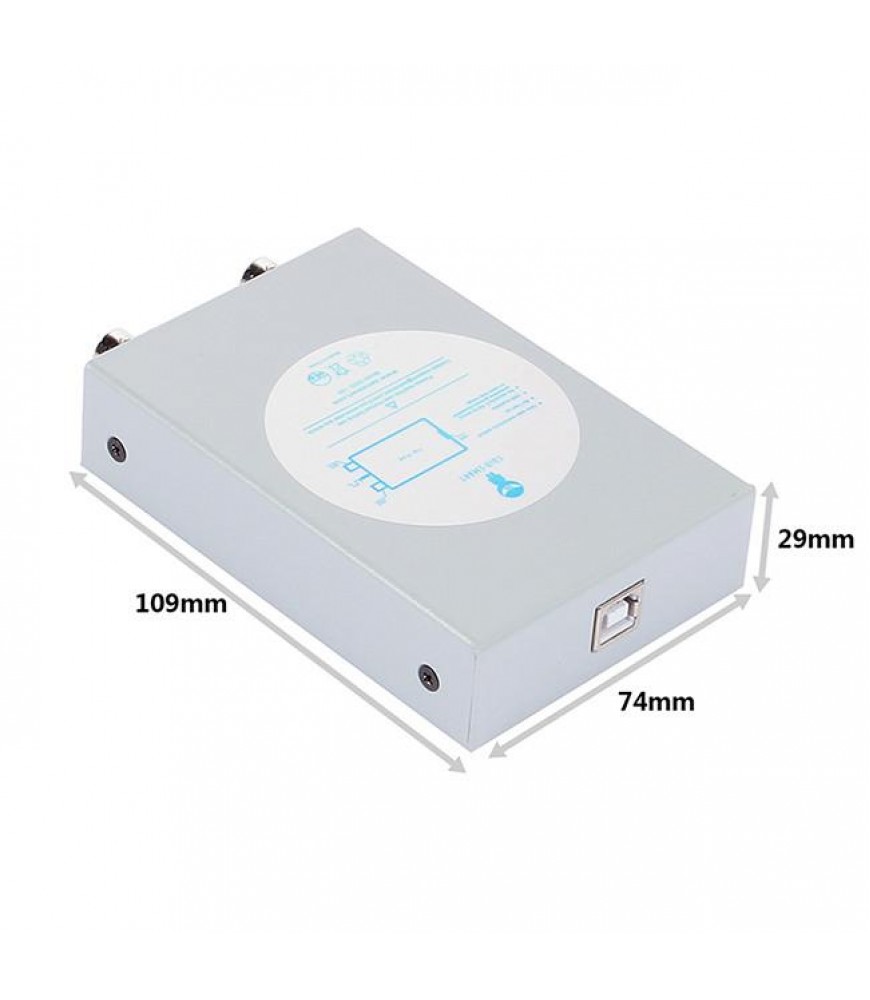

Size	12 cm X 7.5cm X 2.5 cm

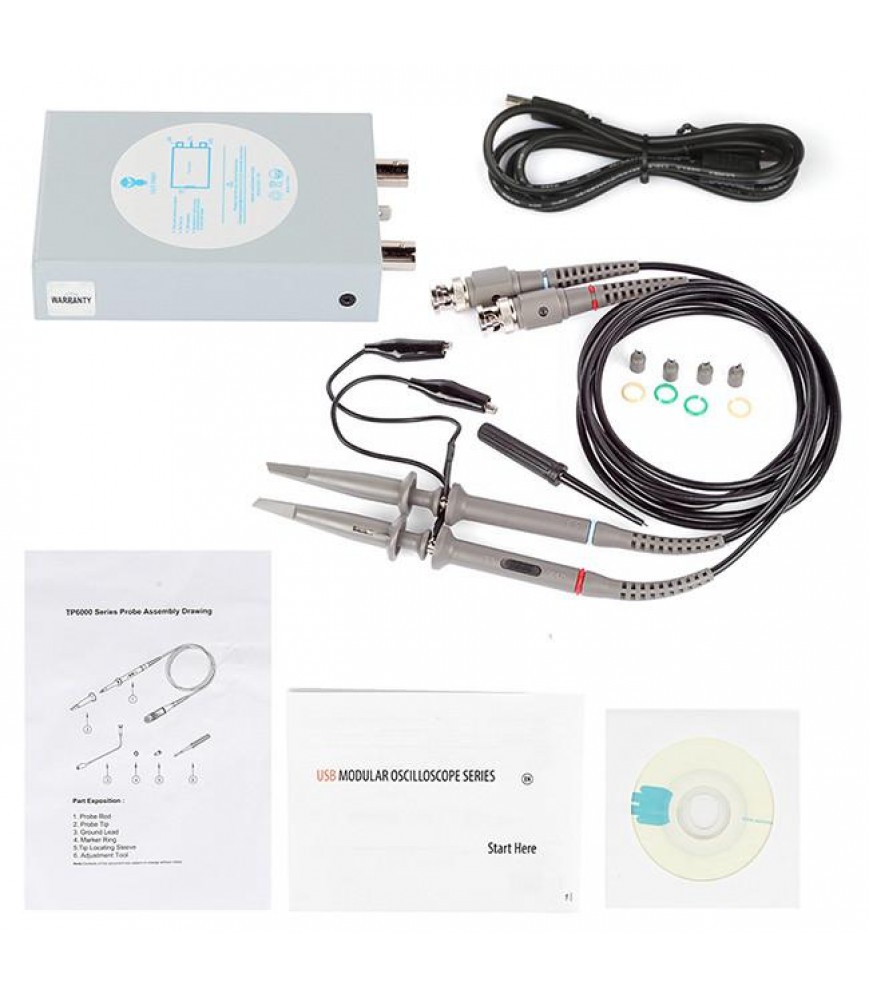

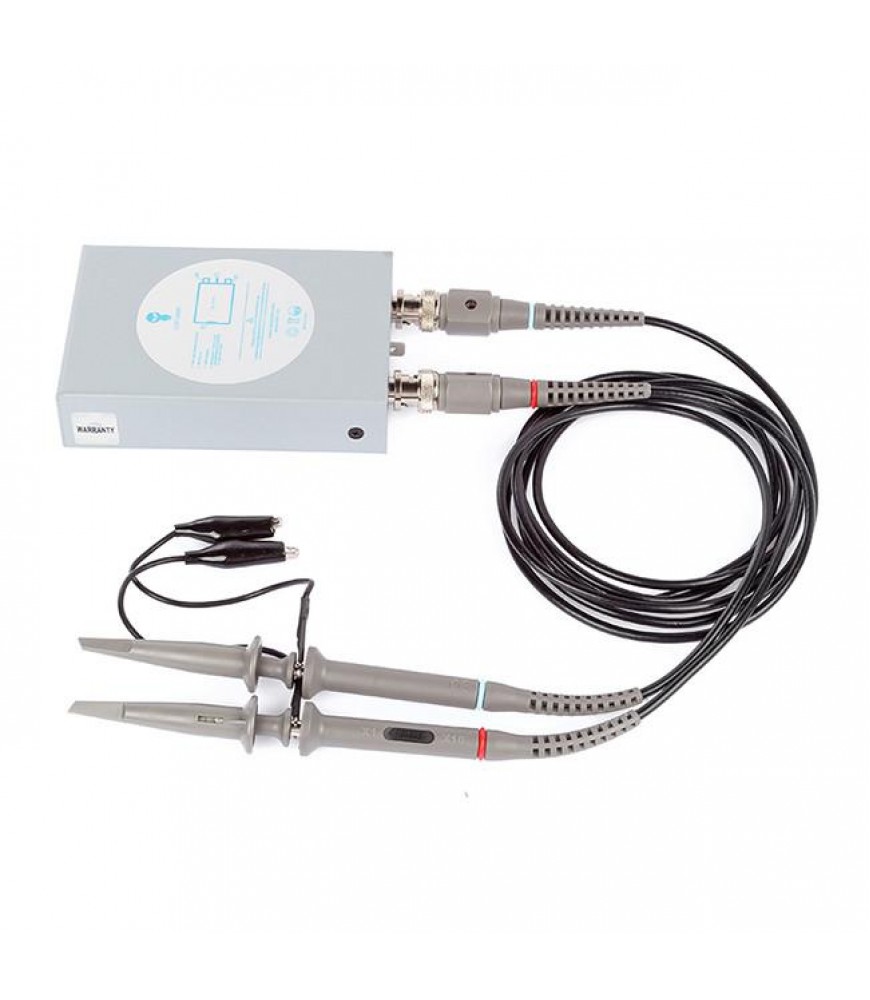

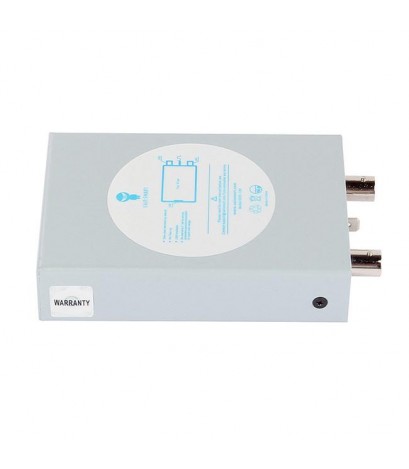

1XDDS120 Pro PC-Based USB Digital Storage Oscilloscope

1Xuser's Guide

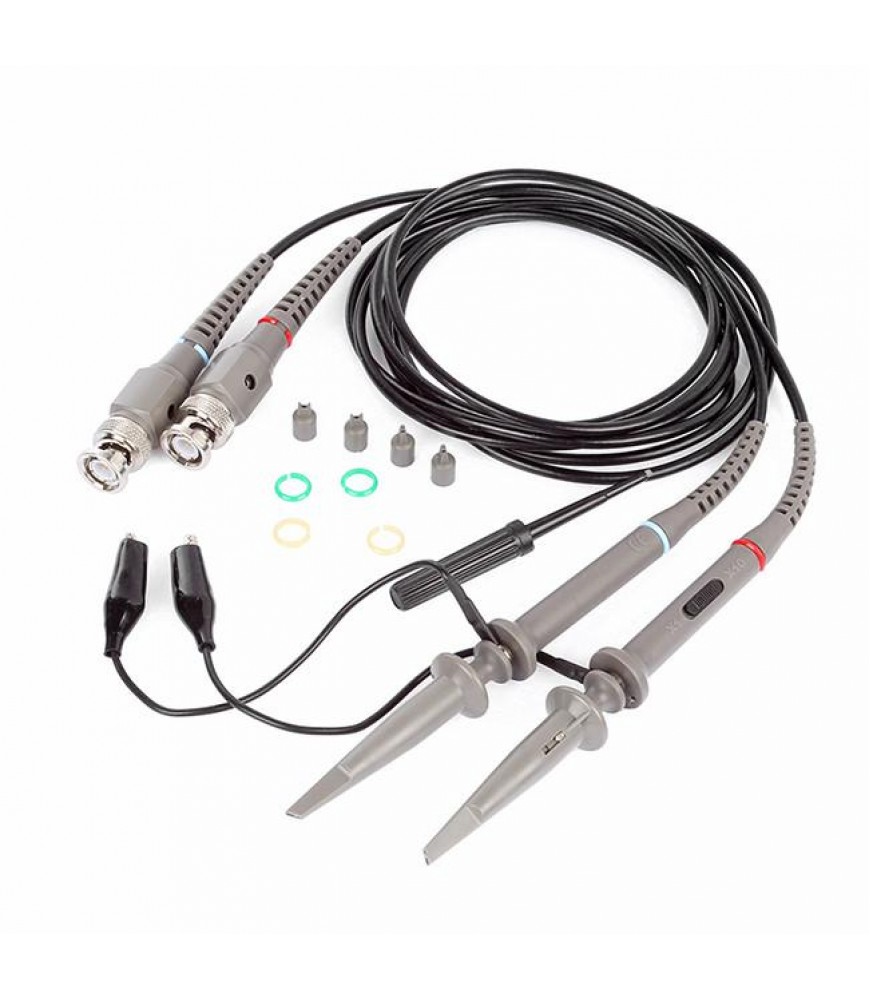

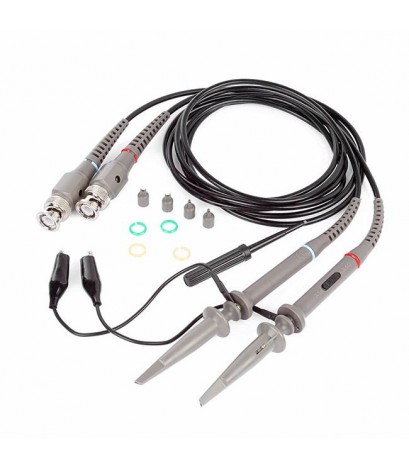

2Xoscilloscope probe(X1,X10)

1XUSB Cable

1XCD (manual Software etc.)
